CCT-100

Cable Tester

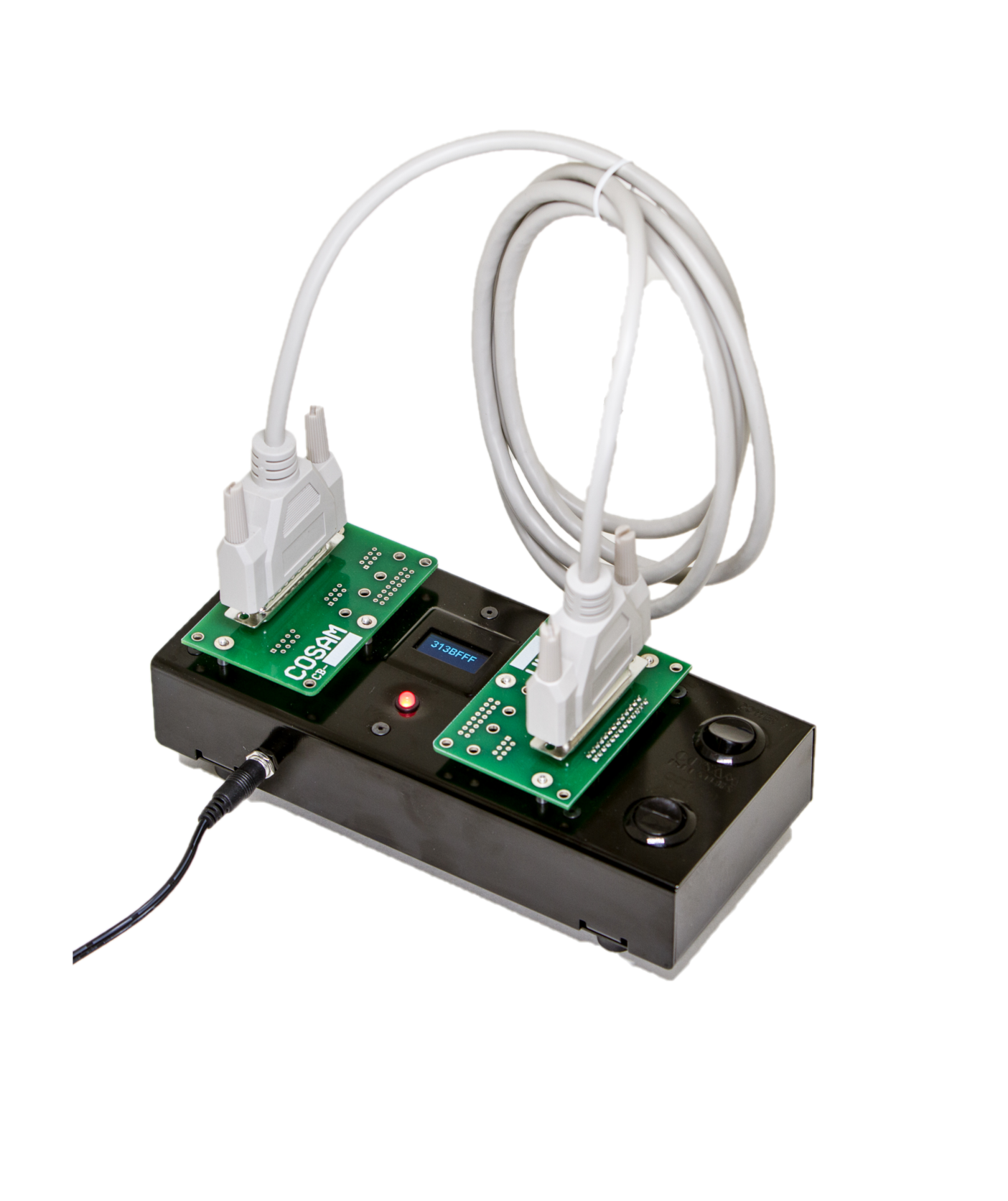

Automatic Custom Cable Tester.  Instantly test up to 52 test points as soon as you connect your cable.  OLED display with pass/fail indicating light and audible notification.  Steel construction: 7.75″ x 3.50″ x 1.5″

• Capable: 52 Test points (Cables up to 26 wires) Detects Opens, Shorts, Miss-wires, Bad connections, and Diode polarity.
• Versatile: Many standard connector boards available as well as a build-your-own option for specialized connectors.
• Compact: 75” x 3.5” x 1.5” (197 mm  x 89 mm x 38 mm)
• Rugged: Made from 18 gauge cold rolled steel.  Will last for decades.
• Fast: Tests at speeds up to thirty times per second and starts without pressing a button.
• Intuitive: Easy to read status updates shown on the clear and bright OLED display along with simple Pass/Fail indication by both green/red LED and dual-tone audio buzzer.

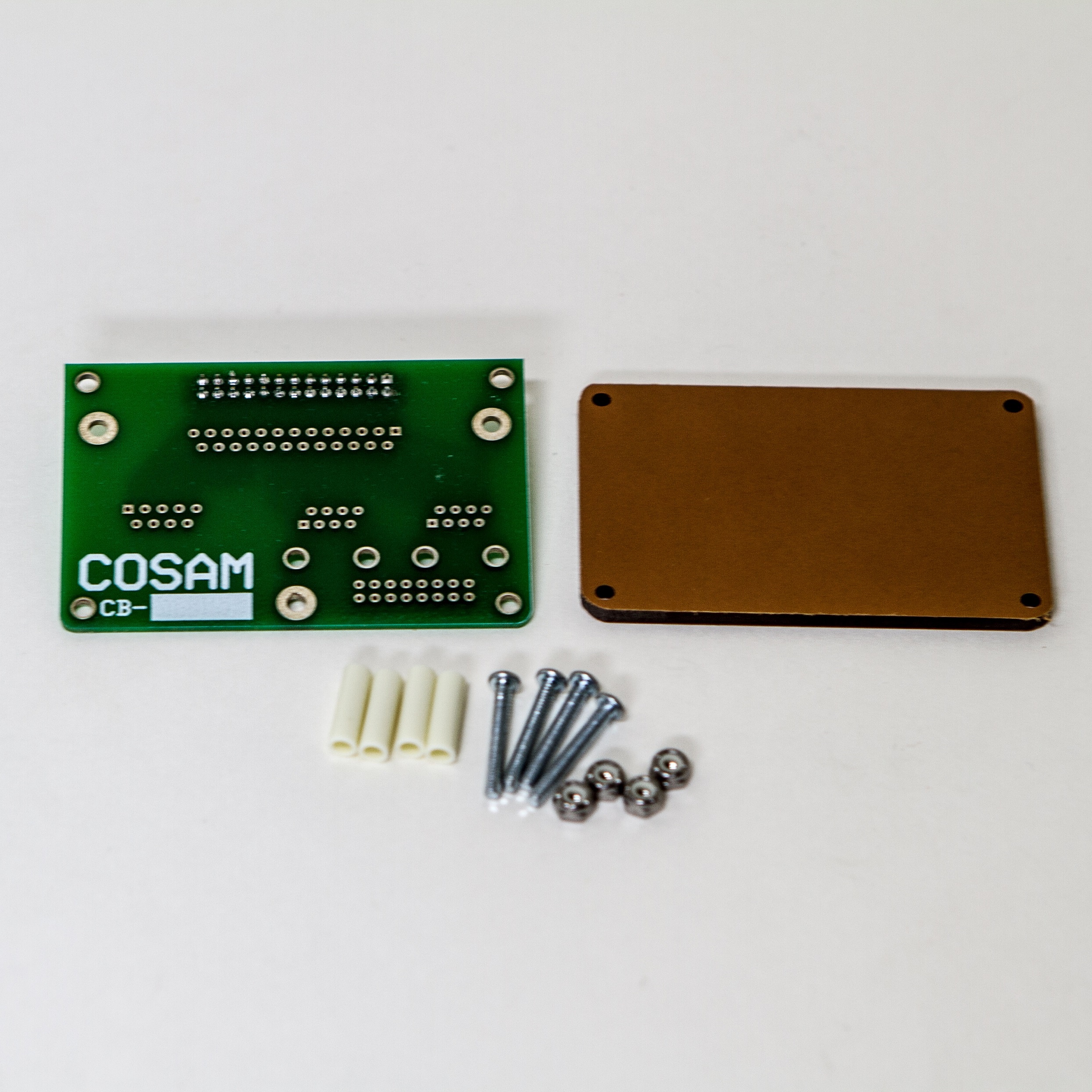

This Universal DIY connector board can be used with any connector.  Simply drill holes into the brown mounting board and attach the connector(s) of your choice.  Then, solder each contact to the main board.

• Easy to mount any connector (Either screw, bolt, or glue in place)
• Gold Plated contact pins for high reliability
• Many JTS 1mm, 1.5mm and 2mm connectors can be soldered directly to the main board
• Made in the USA
